No.2170 QuickClip Heavy Duty Straining System

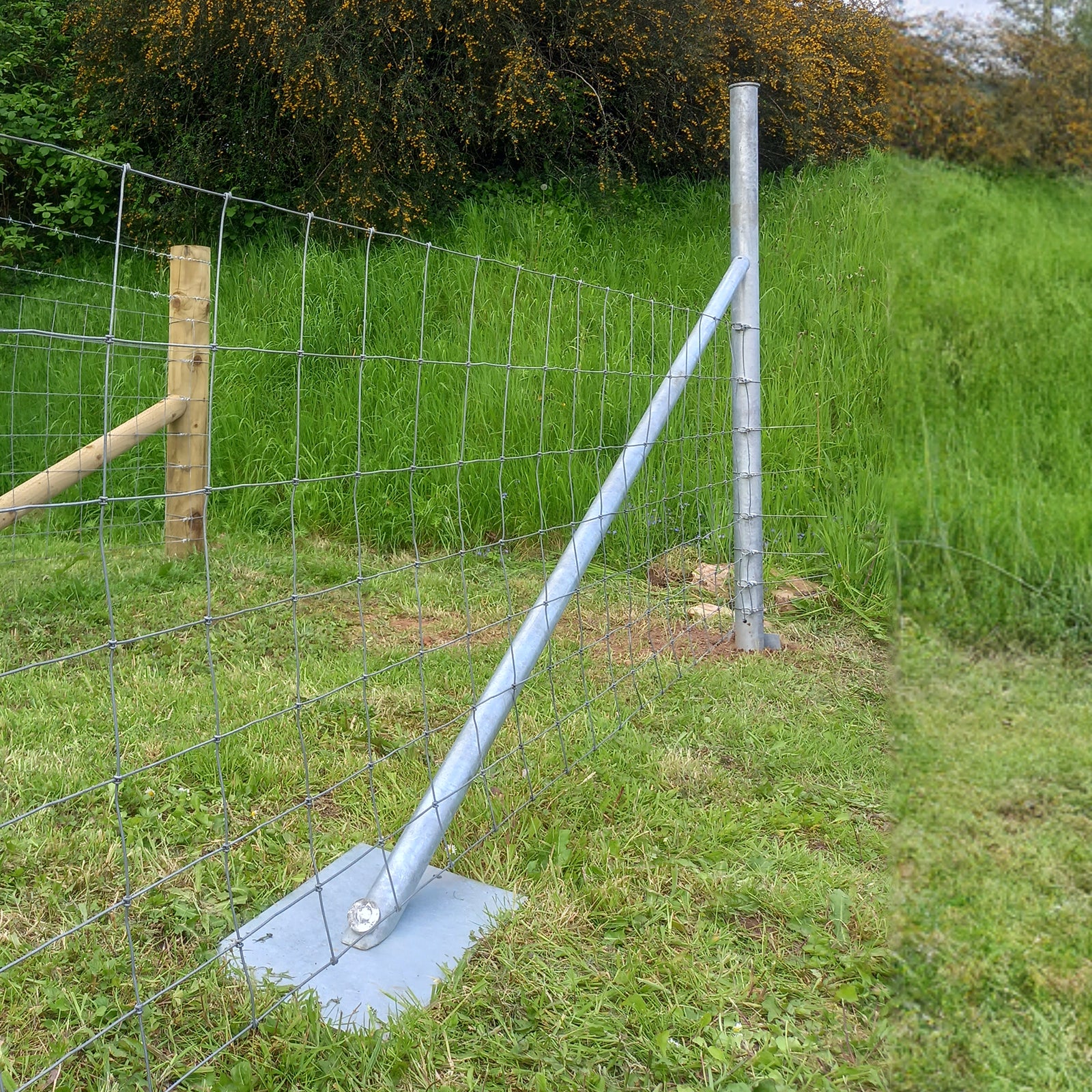

The No.2170 QuickClip Heavy Duty Straining System is a complete end straining assembly for the QuickClip Metal Fencing System. The thick walled tubular strainer has a fully welded top cap and can be mechanically or hydraulically driven.

System contents

• 1 x No.2170/POST QuickClip Straining Post, 2400mm, code 2170-POST-GV
• 1 x No.2170/STRUT QuickClip Straining Post Support Bar, 2500mm, code 2170-STRUT-GV
• 1 x No.2170/BASE QuickClip Pressure Plate Base, 250mm, code 2170-BASE-GV
• 1 x No.2170/PIN QuickClip Drive-in Security Pin, 760mm, code 2170-PIN-GV

Key features

• Exceptionally strong, with a fully welded top cap
• Thick walled tubular strainer, can be mechanically or hydraulically driven
• Fully welded 6mm thick breast and thrust plate
• Pre-drilled holes to take multiple struts for two way and corner strainers
• Designed to be used with the QuickClip Intermediate Fence Posts

Specifications

• Straining post length: 2400mm
• Support bar length: 2500mm
• Pressure plate base: 250mm
• Security pin length: 760mm
• Finish: Galvanised
• Corrosion resistance: Rating 4
• Sold as: Each system
