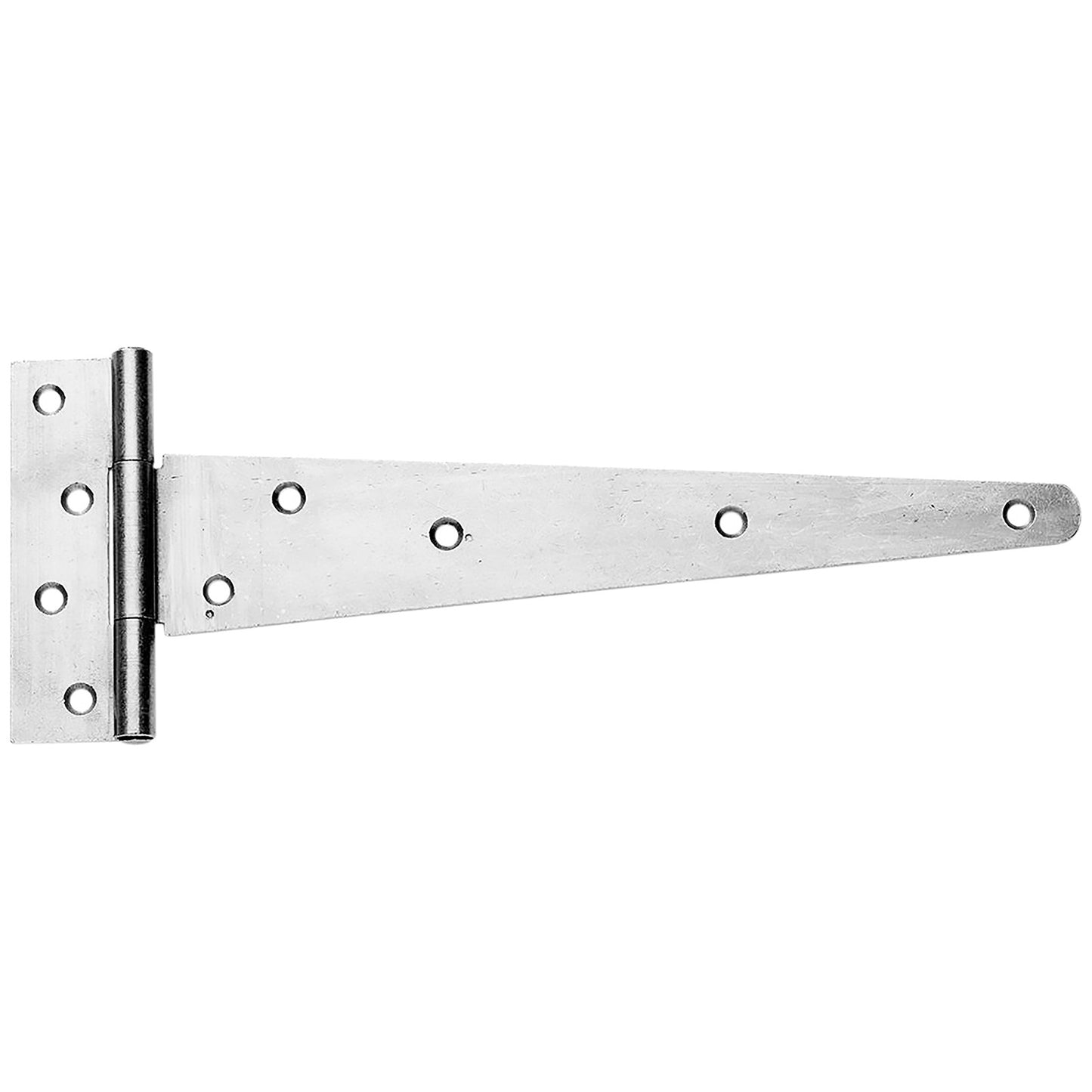

The No.119 Weighty Scotch Tee Hinge is a very strong hinge for heavy gates. Tee hinges are usually half the width of the gate for optimum support. Available in sizes from 100mm (4") to 600mm (24"), in galvanised, zinc plated or self colour.
Key features
- A very strong hinge for heavy gates
- Usually fitted at half the width of the gate for optimum support
- Ten sizes from 100mm (4") to 600mm (24")
- Available galvanised, Zinc Plated (BZP) or self colour
Maximum gate weight
- 100mm (4"): 10kg
- 150mm (6"): 15kg
- 200mm (8"): 40kg
- 250mm (10"): 50kg
- 300mm (12"): 60kg
- 350mm (14") and 400mm (16"): 80kg
- 450mm (18") to 600mm (24"): 100kg
- Maximum gate weights are for guidance only
Specifications
- Sizes available: 100mm (4"), 150mm (6"), 200mm (8"), 250mm (10"), 300mm (12"), 350mm (14"), 400mm (16"), 450mm (18"), 500mm (20"), 600mm (24")
- Finish options: Galvanised in all sizes, Zinc Plated (BZP) up to 450mm and in 600mm, Self Colour up to 450mm
- Sold as: Pair
- Box quantity: 5 up to 300mm
- Carton quantities: 50 on the 100mm, 30 on the 150mm, 20 on the 200mm, 15 on the 250mm and 300mm, 5 from 350mm to 500mm, 2 on the 600mm
