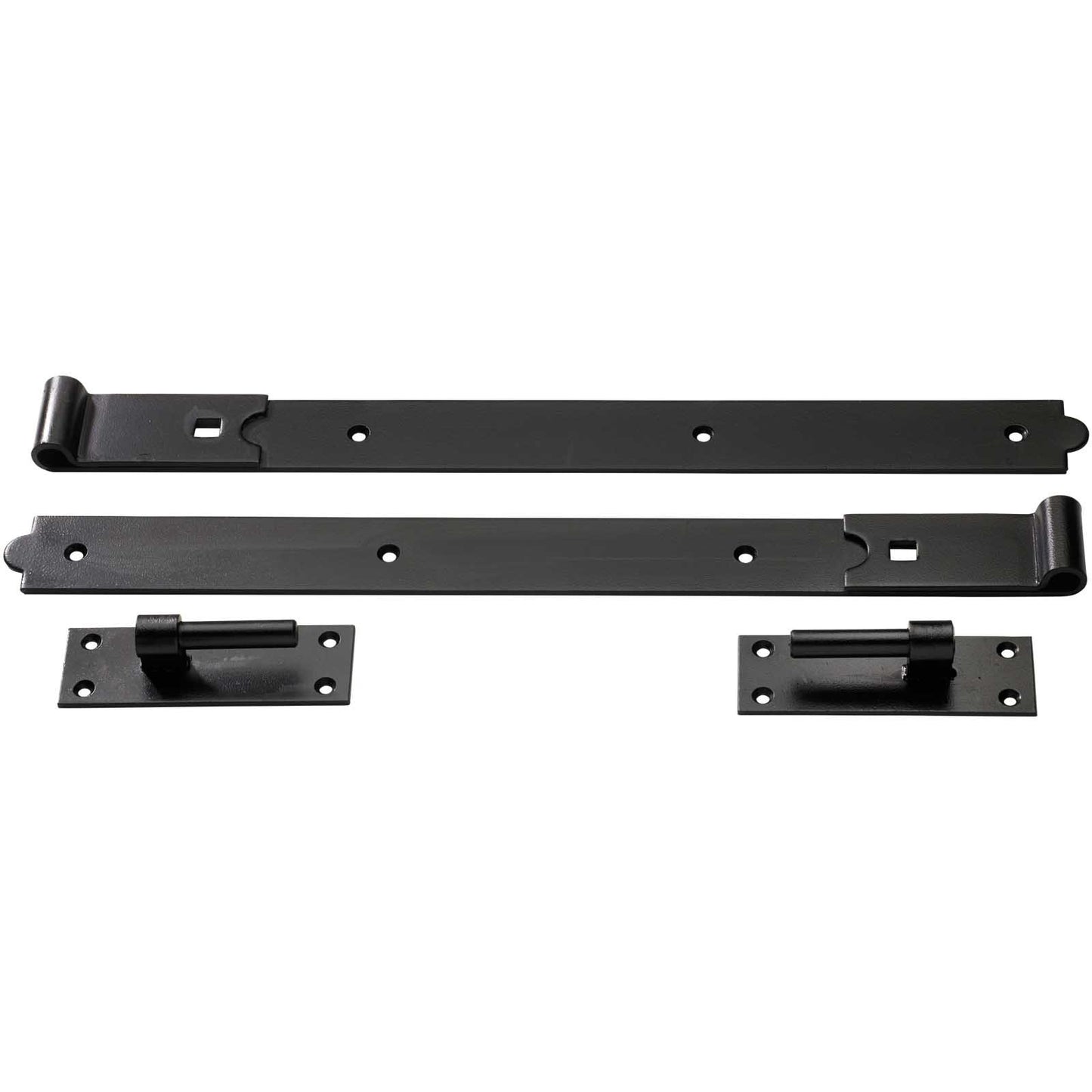

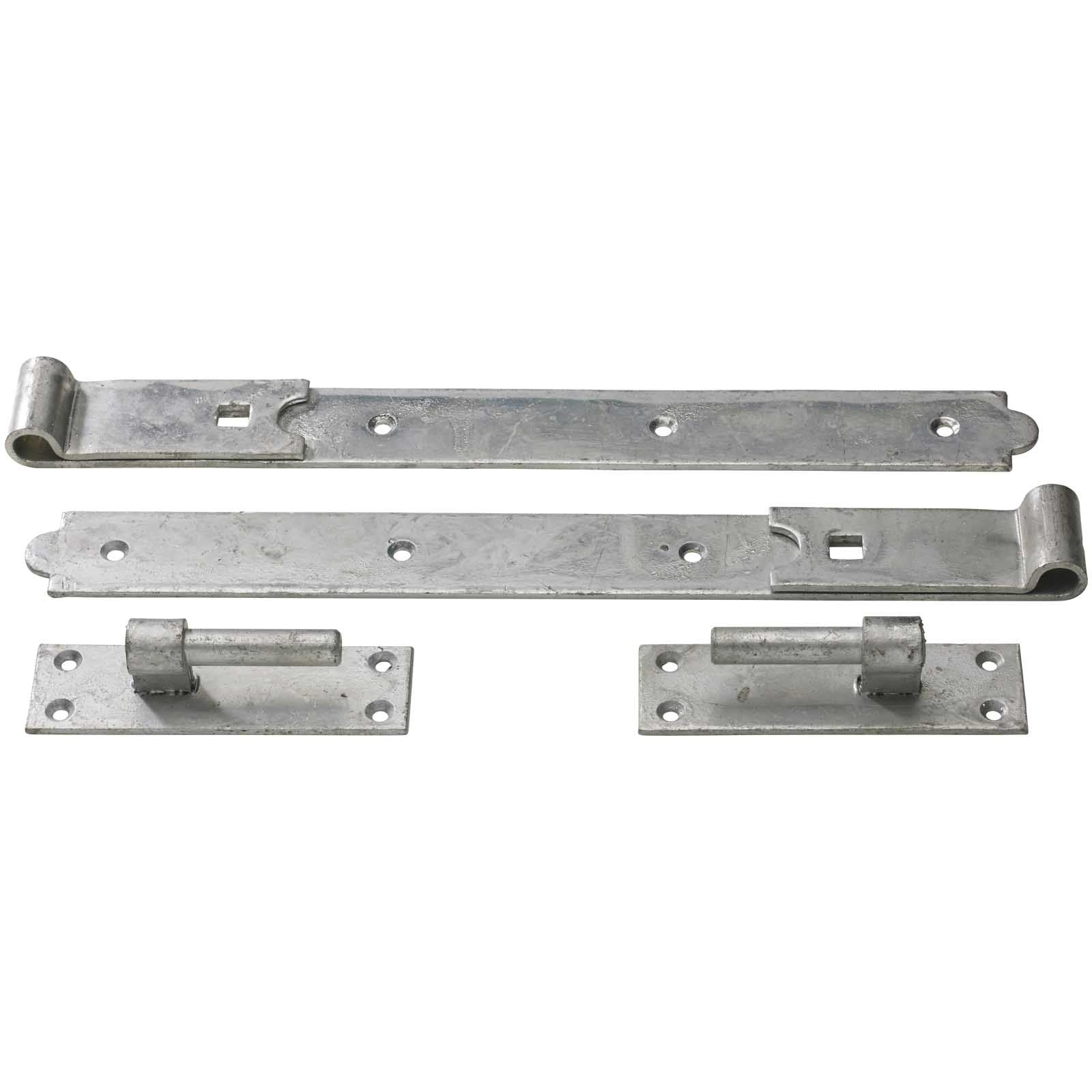

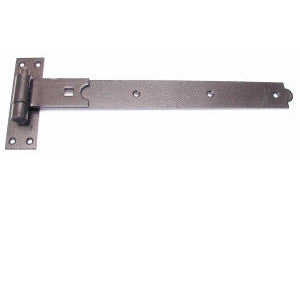

The No.128 is a heavy duty straight band hinge used to hang gates and large doors, supplied as a band with a hook on a plate. Straight hinges allow the gate or door to sit proud of the post or frame. Available in sizes from 200mm (8") to 900mm (36").
Key features
- Heavy duty band hinge for gates and large doors
- Straight pattern allows the gate or door to sit proud of the post or frame
- Sizes from 200mm (8") to 900mm (36")
- Available in black, galvanised or self colour
Pin diameters
- 250mm (10") to 400mm (16"): 12mm pin
- 450mm (18") to 600mm (24"): 16mm pin
- 750mm (30") and 900mm (36"): 19mm pin
Specifications
- Sizes available: 200mm (8"), 250mm (10"), 300mm (12"), 350mm (14"), 400mm (16"), 450mm (18"), 500mm (20"), 600mm (24"), 750mm (30"), 900mm (36")
- Finish options: Black, Galvanised, Self Colour (self colour in 250mm, 300mm, 350mm and 750mm only)
- Sold as: pair
- Carton quantities: 5 up to 400mm, 4 on 450mm and 500mm, 2 on 600mm and above
