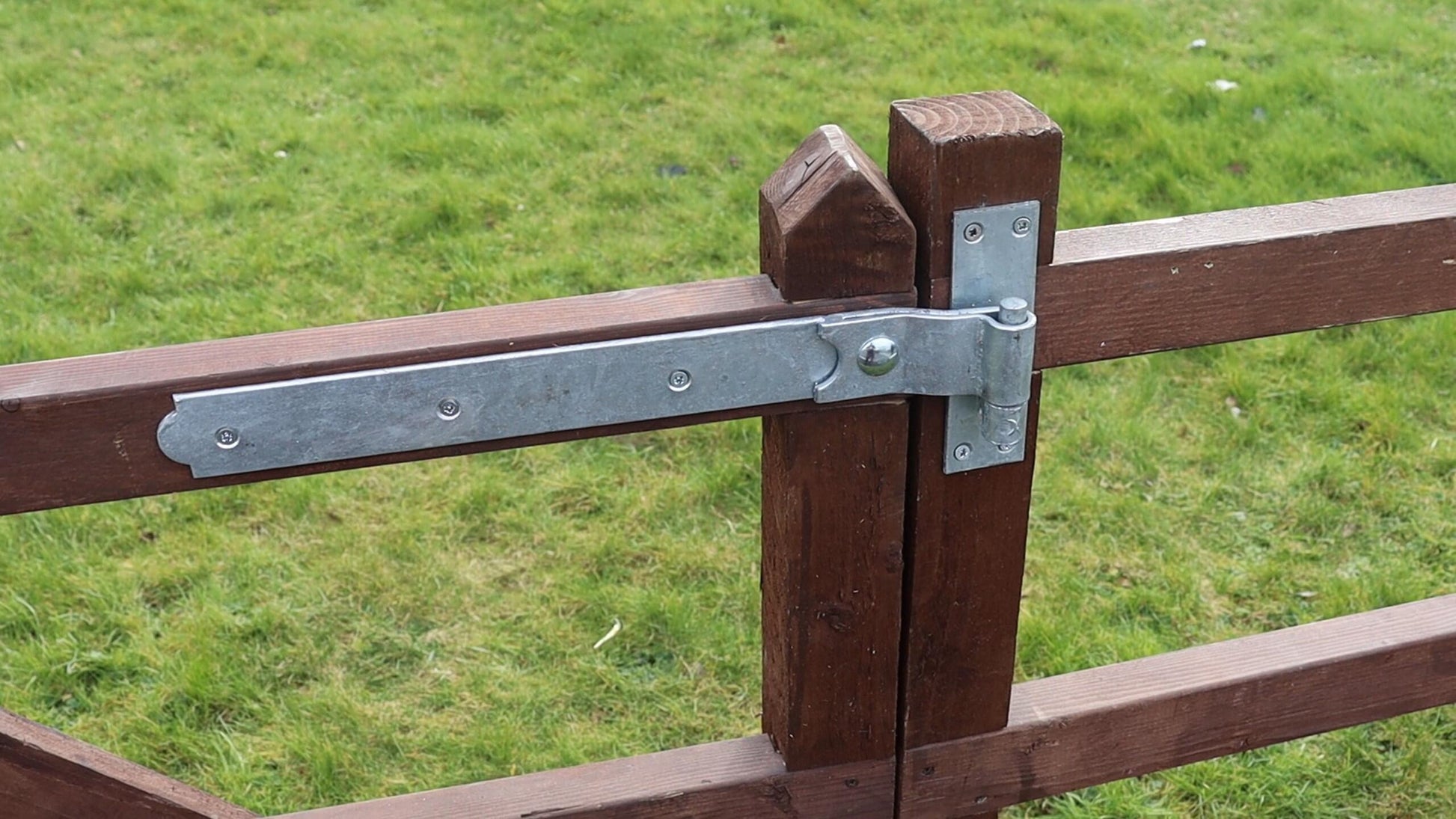

The No.130 is a heavy duty cranked band hinge used to hang gates and large doors, supplied as a band with a hook on a plate. Cranked hinges keep the post flush with the door or gate, so they are used where the gate or door and the post or frame sit flush. Available in sizes from 200mm (8") to 1200mm (48").
Key features
- Heavy duty band hinge for gates and large doors
- Cranked pattern for use where the gate or door and the post or frame are flush
- Sizes from 200mm (8") to 1200mm (48")

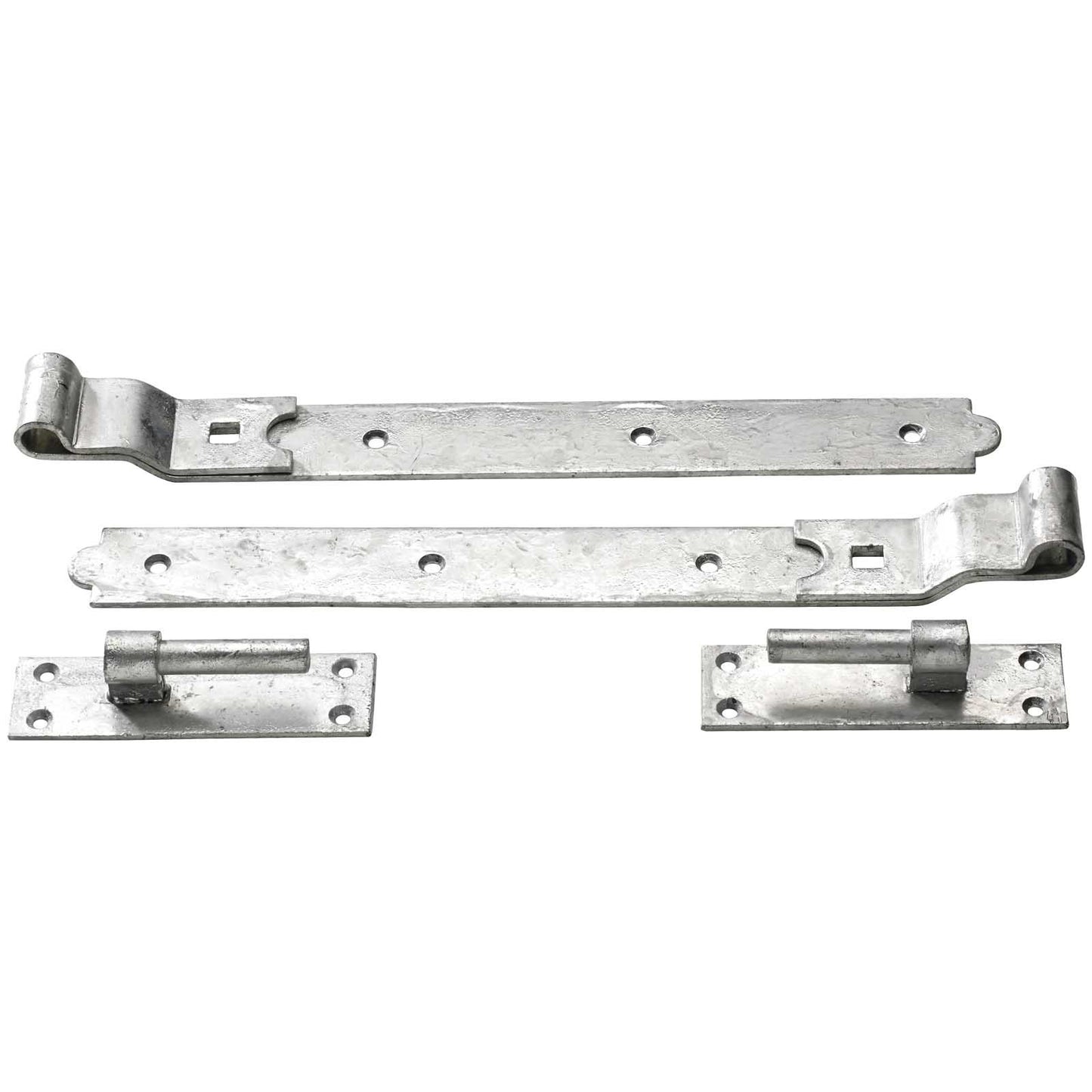

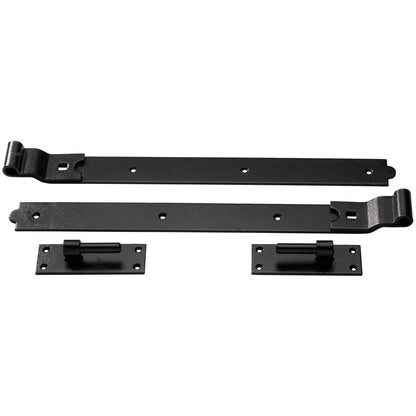

- Available in black, galvanised or self colour
Pin diameters
- 200mm (8") to 400mm (16"): 12mm pin
- 450mm (18") to 600mm (24"): 16mm pin
- 750mm (30") to 1200mm (48"): 19mm pin
Specifications
- Sizes available: 200mm (8"), 250mm (10"), 300mm (12"), 350mm (14"), 400mm (16"), 450mm (18"), 500mm (20"), 600mm (24"), 750mm (30"), 900mm (36"), 1050mm (42"), 1200mm (48")
- Finish options: Galvanised in all sizes, Black from 250mm upwards, Self Colour in 600mm and 750mm only
- Sold as: pair
- Carton quantities: 10 on the 200mm, 5 from 250mm to 400mm, 4 on 450mm and 500mm, 2 from 600mm to 900mm, 1 on 1050mm and 1200mm
