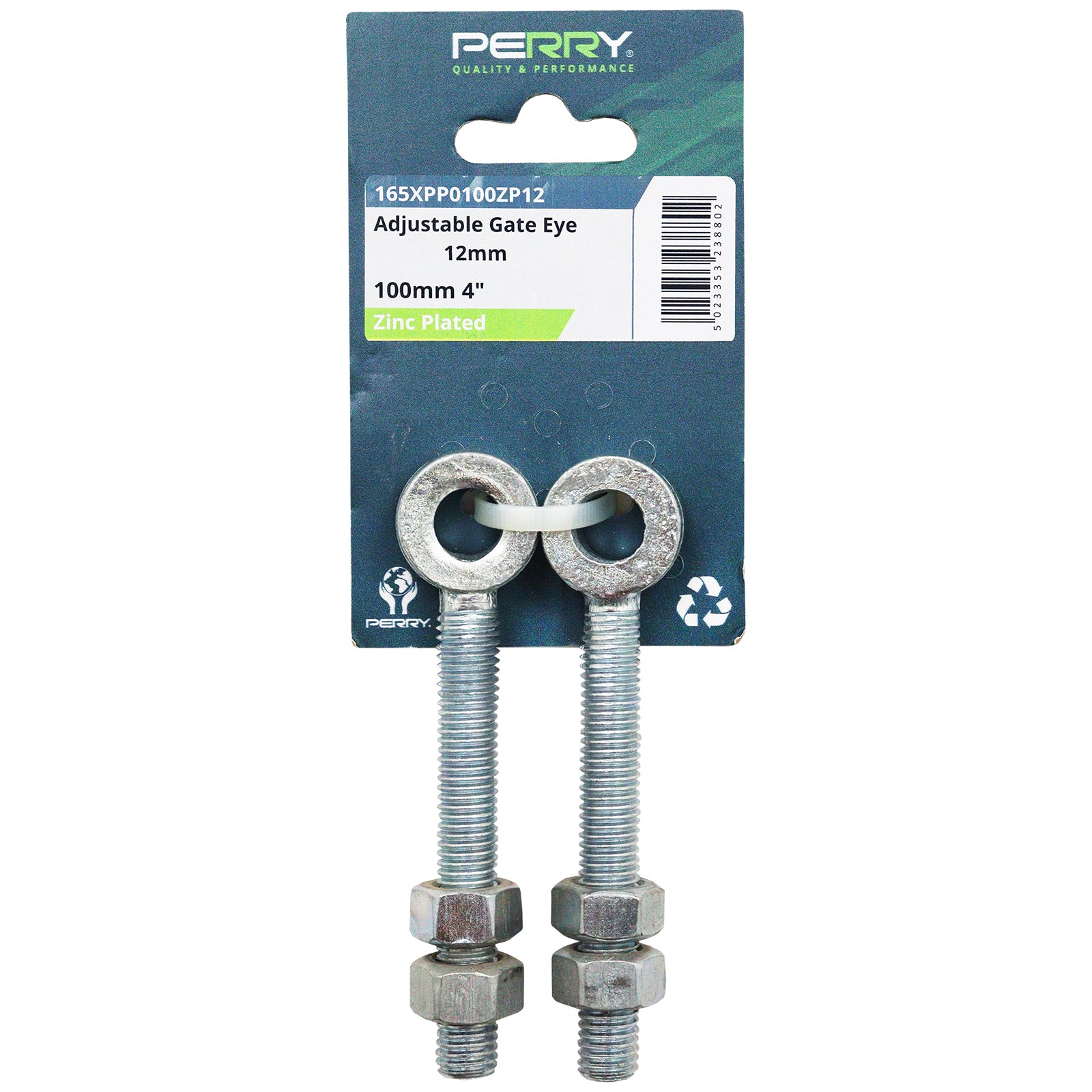

The No.165 Adjustable Gate Eye is a threaded eyebolt for hanging gates, allowing the gate to be placed and positioned accurately. Available in four lengths from 100mm (4") to 250mm (10"), to suit pins from 10mm to 32mm, in zinc plated or galvanised.
Key features
- Threaded shank allows the gate position to be adjusted
- To suit pins from 10mm to 32mm
- Four lengths from 100mm (4") to 250mm (10")
- Zinc Plated (BZP) across the range, with galvanised in selected sizes
Sizes available
- 100mm (4"): to suit 10mm, 12mm, 16mm, 19mm or 22mm pin, 5/8" thread
- 150mm (6"): to suit 12mm (1/2" thread), 16mm or 19mm (5/8"), 22mm, or 25mm (1")
- 200mm (8"): to suit 16mm (5/8" thread), 19mm or 22mm (3/4"), 25mm (1"), or 32mm (1 1/4")
- 250mm (10"): to suit 19mm or 22mm pin, 3/4" thread
Specifications
- Lengths available: 100mm (4"), 150mm (6"), 200mm (8"), 250mm (10")
- Pin sizes: 10mm to 32mm
- Thread sizes: 1/2", 5/8", 3/4", 1" and 1 1/4", depending on length and pin size
- Finish options: Zinc Plated (BZP), Galvanised (the 25mm and 32mm pin sizes are galvanised only)
- Sold as: each
- Carton quantity: 10, rising to 40, 80 or 100 on the smaller pin sizes
