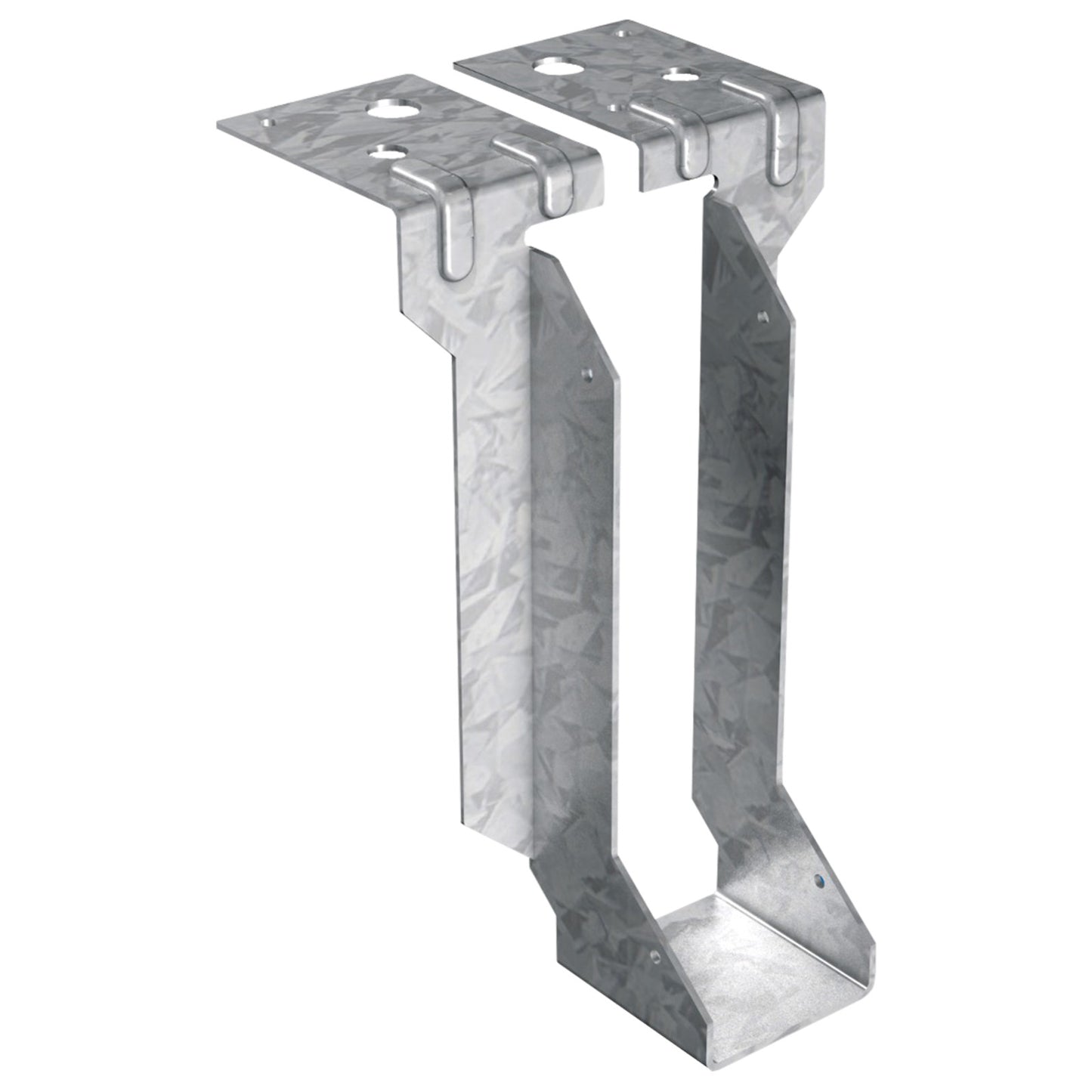

The No.280/S Single Piece Masonry Joist Hanger is designed for building into brickwork or blockwork. The wide top flange design offers increased loading capacity on masonry with a minimum crushing strength of 3.5N/mm² and above. Manufactured from pre-galvanised steel, to BS EN 10346:2009, S280, and CE certified.
Key features
- Designed for building into brickwork or blockwork
- Wide top flange for increased loading capacity on masonry
- Suits masonry with a minimum crushing strength of 3.5N/mm² and above
- Hangers 150mm deep and over are manufactured 10mm less, to allow for notching and regularisation of timber joists
- Manufactured from pre-galvanised steel
- Manufactured to BS EN 10346:2009, S280
- CE certified
Specifications
- Sizes (47mm width): 100mm, 125mm, 150mm, 175mm, 200mm, 225mm
- Sizes (75mm width): 150mm, 225mm
- Thickness: 2mm
- Minimum crushing strength: 3.5N/mm²
- Material: Pre-galvanised steel
- Standard: BS EN 10346:2009, S280
- Certification: CE
- Sold as: Each
