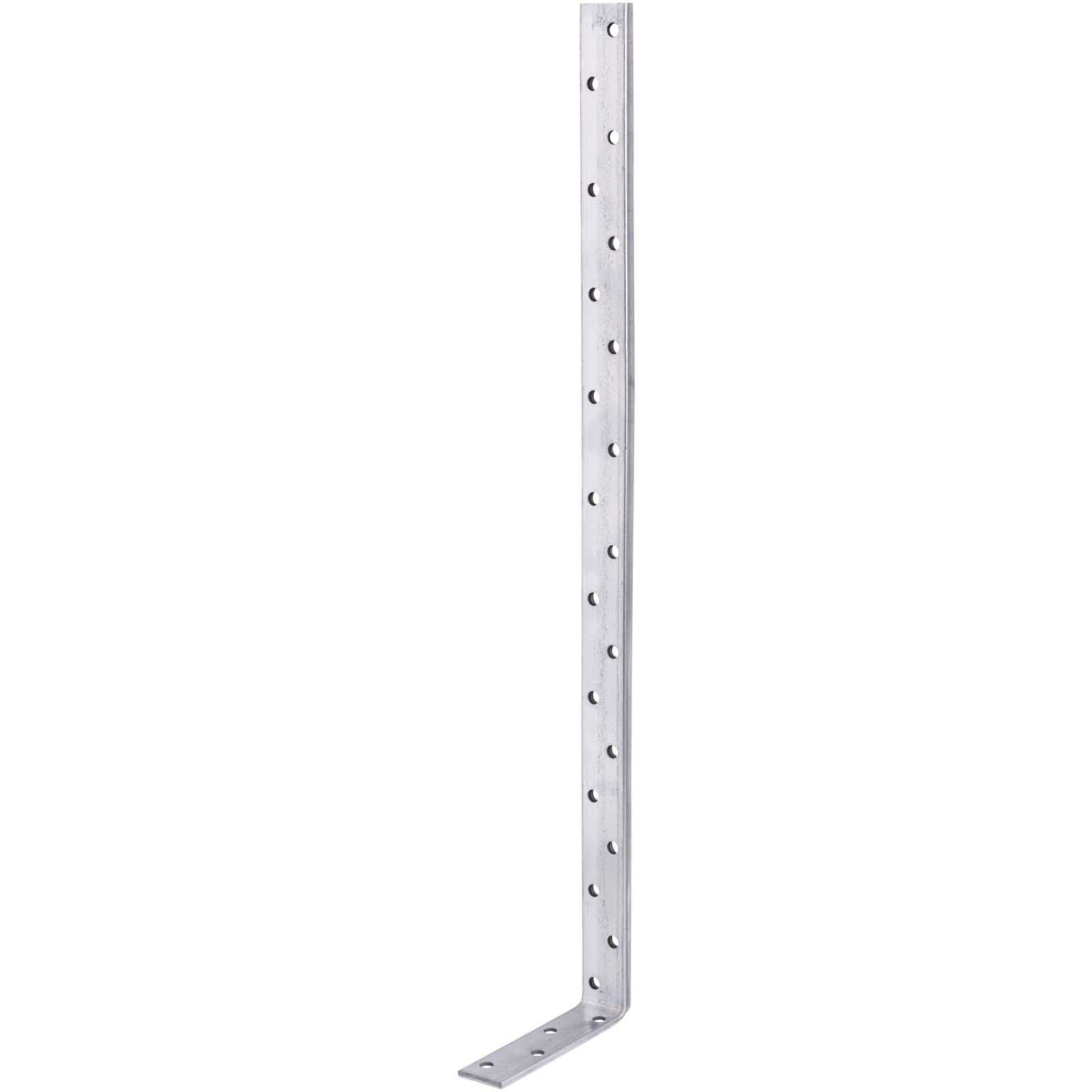

The No.287/VX Light Duty Vertical Engineered Restraint Strap is manufactured from galvanised mild steel to BS EN 10346. It is a thin profile 1.2mm thick strap suitable for vertical restraint applications such as tying wall plates to masonry walls.
Key features
- Quick and easy to install
- Direct replacement for bent V restraint strap
- Lighter and easier to handle than traditional straps

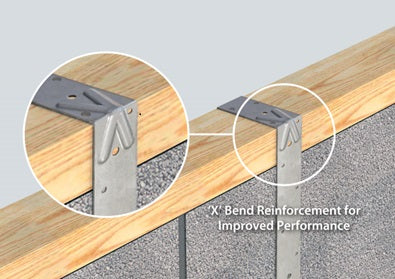

- Unique X reinforcement in the bend for increased performance
Fixings
- Timber recommended fixing: 3no. 3.75 x 30mm sherardised square twist nail
- Masonry fixings are the responsibility of the Building Designer
- Lowest fixing shall be within 150mm of the bottom of the strap
Approvals
- Meets the requirements of BS EN 845-1
- UKCA marked
- CE marked
Specifications
- Total lengths: 600mm, 1000mm
- Strap length: 500mm (600mm strap), 900mm (1000mm strap)
- Bend: 100mm
- Width: 35mm
- Thickness: 1.2mm
- Material: Galvanised mild steel to BS EN 10346
- Box quantity: 20
- Sold as: Each
