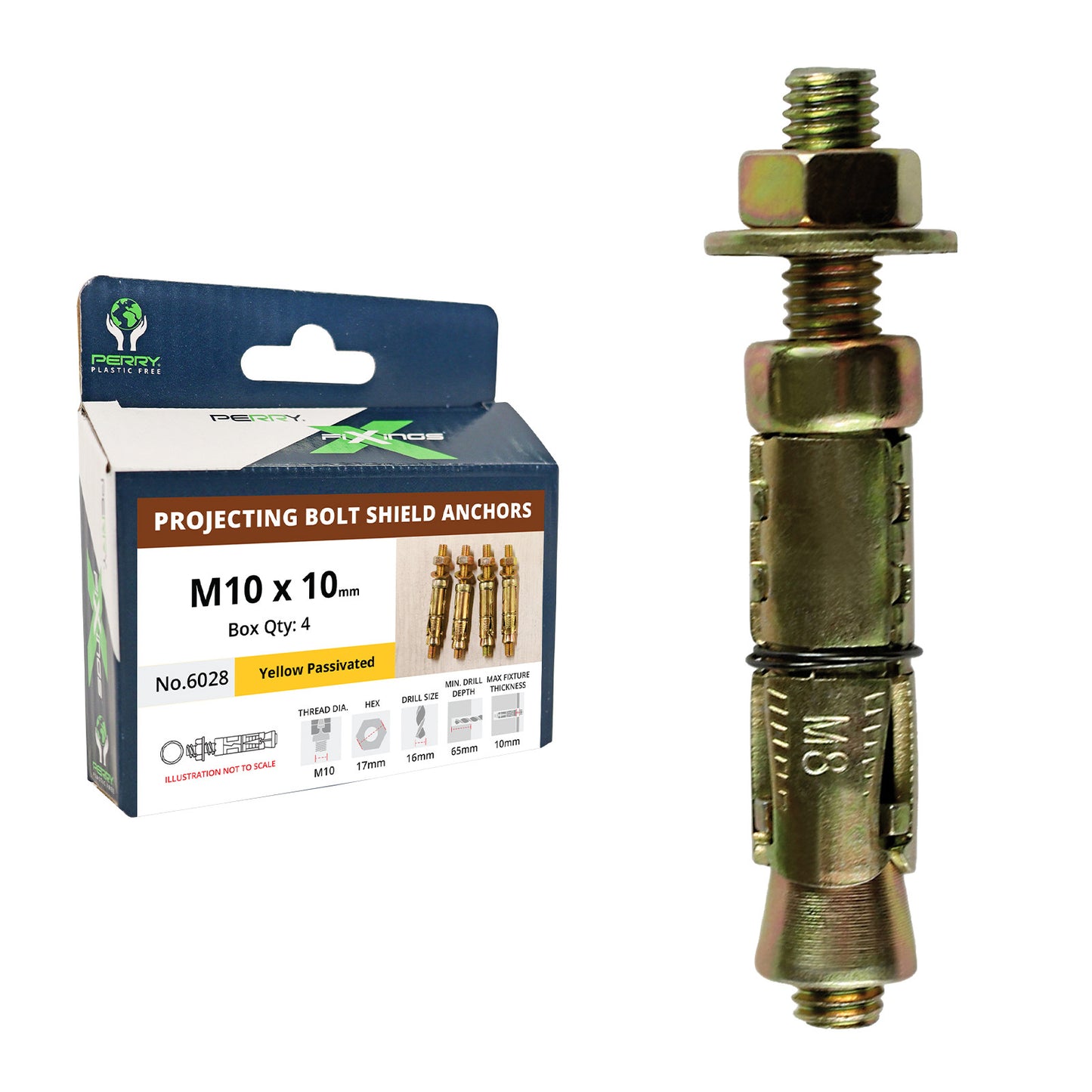

The No.6028/PP Projecting Bolt Shield Anchor is a torque controlled shield anchor suitable for use in concrete, concrete blocks, hard stone and solid brickwork. Commonly used as a wall fixing, as the projecting stud provides support during installation. Supplied in a retail friendly hanging pack.
Key features
- Torque controlled shield anchor
- Projecting stud provides support during installation
- For concrete, concrete blocks, hard stone and solid brickwork
- Retail friendly hanging pack, plastic free packaging
Specifications
- Thread diameters: M6, M8, M10, M12
- Max fixture thickness: 10mm to 80mm, depending on size
- Drill size: 12mm (M6), 14mm (M8), 16mm (M10), 20mm (M12)
- Minimum hole depth: 50mm (M6), 55mm (M8), 65mm (M10), 85mm (M12)
- Corrosion resistance: Rating 2
- Sold as: Each
- Pack quantity: 4
- Packs per outer box: 5 or 6, depending on size
